OP-EW24
OP-EW24
Hex Size (mm)：17 ~24
Hex Size (Inch)：11/16"
Torque：10 ~ 20 Nm
Free Speed：150 rpm
● Lightweight, ergonomic, and easy to service
● External torque adjustment :
Turn right to increase and left to decrease.
● One button for easily releasing
● Open ratchet style can be customized
● Adjust wrench gear set angle
Application :
● Gas ramps in hobs, Boiler pipes, Bicycle brake cable,
Automobile industry, Pump power cord, Coffee machine pipes.
● External torque adjustment :
Turn right to increase and left to decrease.
● One button for easily releasing
● Open ratchet style can be customized
● Adjust wrench gear set angle
Application :
● Gas ramps in hobs, Boiler pipes, Bicycle brake cable,
Automobile industry, Pump power cord, Coffee machine pipes.
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Hex Szie | MAX. Torque | Free | Air Consumption | Overall Length | Air Inlet | Net Weight | Sound Level | |||
| Spped | |||||||||||
| mm | Nm | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | |
| OP-EW24 | 17,18,19,20,21,22,23,24, (11/16",3/4",7/8",15/16") | 10 ~ 20 | 150 | 198 | 7 | 438 | 17.24 | 1/4 | 1.84 | 4.05 | 87 |
Packing List:
Carton : 6 PCS , N.W .: 11.12 KGS , G.W. : 13.6 KGS , CUFT : 1.1 "

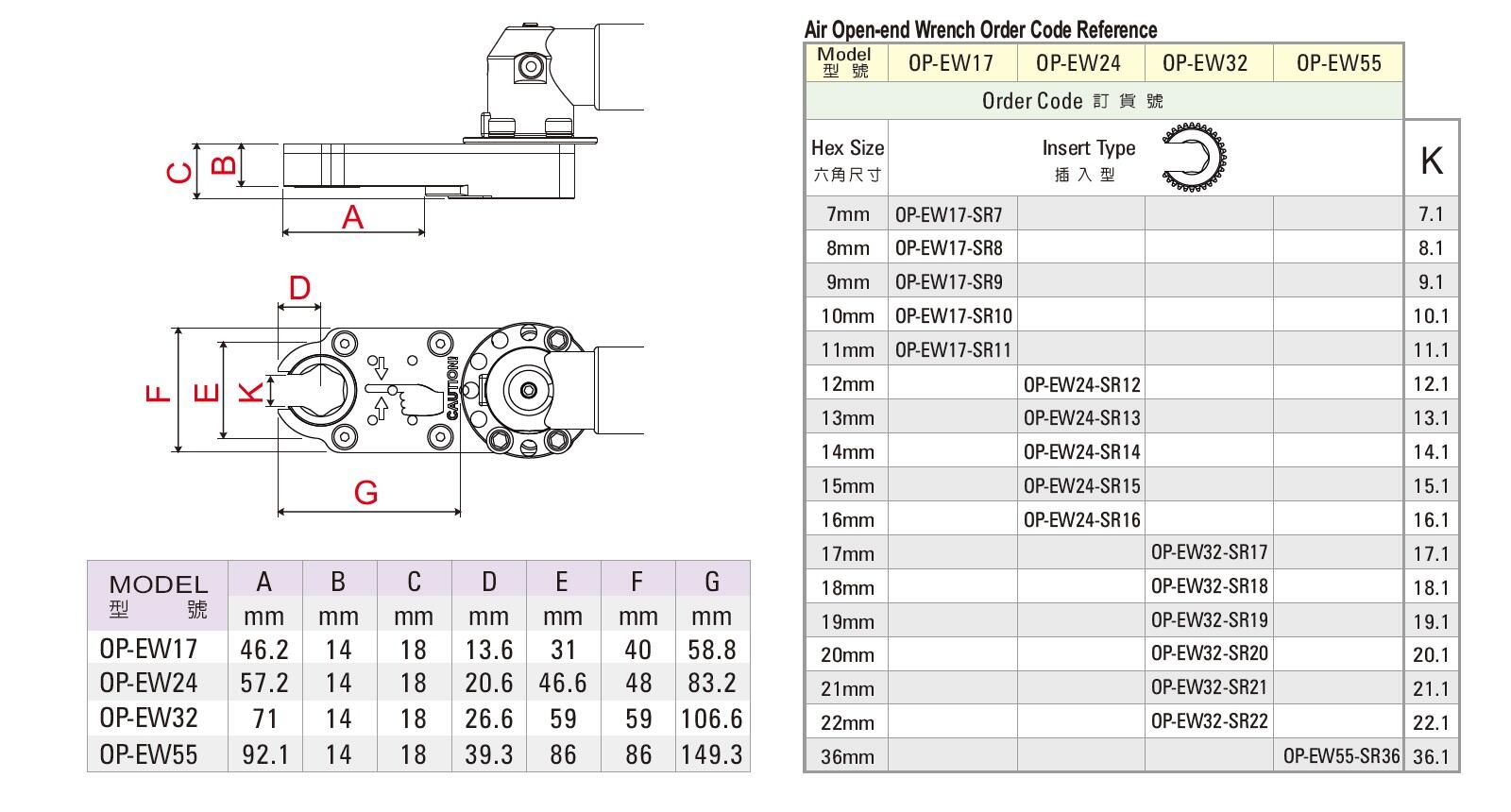

Product specifications and dimensions:
