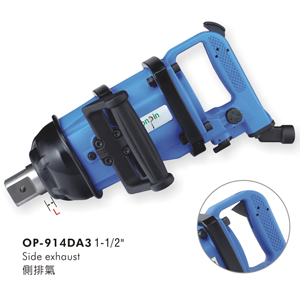

Specifications: OP-914DA3: Side exhaust
‧Outside trigger: OP-914DA3 with driver anvil length 1/2", OP-914DA6 with driver anvil length 6"
‧Inside trigger: OP-914DAZ3 with driver anvil length 1/2", OP-914DAZ6 with driver anvil length 6"
| MODEL | Bolt Size Capacity |
Working Torque |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||||
| mm |
Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm |
inch | P.T |
kg | lb | dB(A) | |
| OP-914DA3 | M27~M30 | 2000 | 1475 | 2700~3000 | 1990~2210 | 2800 | 452 | 16 | 418 | 16.46 | 3/8 | 11.54 | 25.44 | 100 |
| OP-914DAZ3 | M27~M30 | 2000 | 1475 | 2700~3000 | 1990~2210 | 2800 | 452 | 16 | 418 | 16.46 | 3/8 | 11.54 | 25.44 | 100 |
| OP-914DA6 | M27~M30 | 2000 | 1475 | 2700~3000 | 1990~2210 | 2800 | 452 | 16 | 543 | 21.38 | 3/8 | 13.26 | 29.23 | 100 |
| OP-914DAZ6 | M27~M30 | 2000 | 1475 | 2700~3000 | 1990~2210 | 2800 | 452 | 16 | 543 | 21.38 | 3/8 | 13.26 | 29.23 | 100 |
