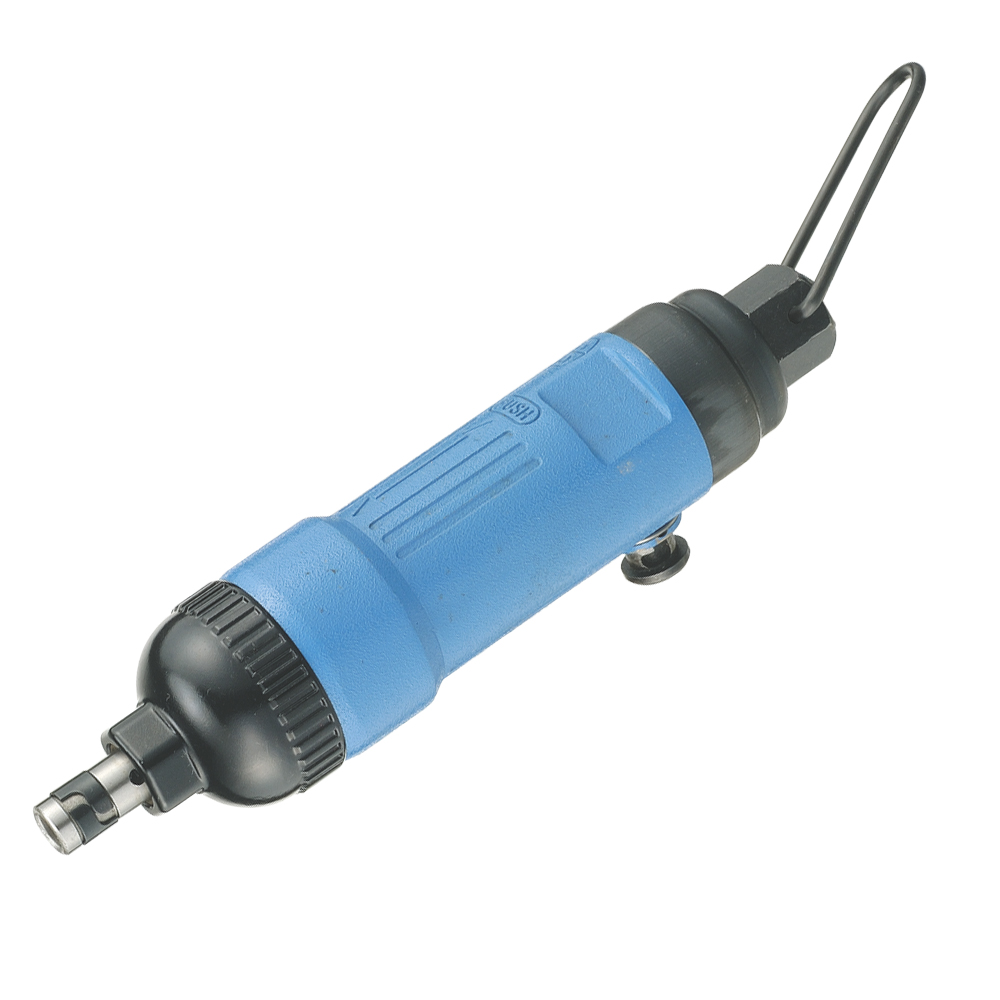

OP-320
● High attack frequency.
● Low counteraction.
● Push to start type
● One hand operation forward and reverse
● Reverse button has self locking function
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
●Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
● Low counteraction.
● Push to start type
● One hand operation forward and reverse
● Reverse button has self locking function
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
●Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
Packing :
Carton : 20 pcs / N.W. : 12.5 kg / G.W : 17.43 kg / Cuft : 1.1 "
| MODEL | Screw Size Capacity | Working Torque |
MAX. Torque |
Free | Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
Bit Type |
|||||
| Speed | |||||||||||||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | type | |
| OP-320 | 4 | 20 | 15 | 35 | 26 | 10000 | 127 | 4.5 | 195 | 7.68 | 1/4 | 0.67 | 1.48 | 80 | Q |
Packing :
Carton : 20 pcs / N.W. : 12.5 kg / G.W : 17.43 kg / Cuft : 1.1 "
