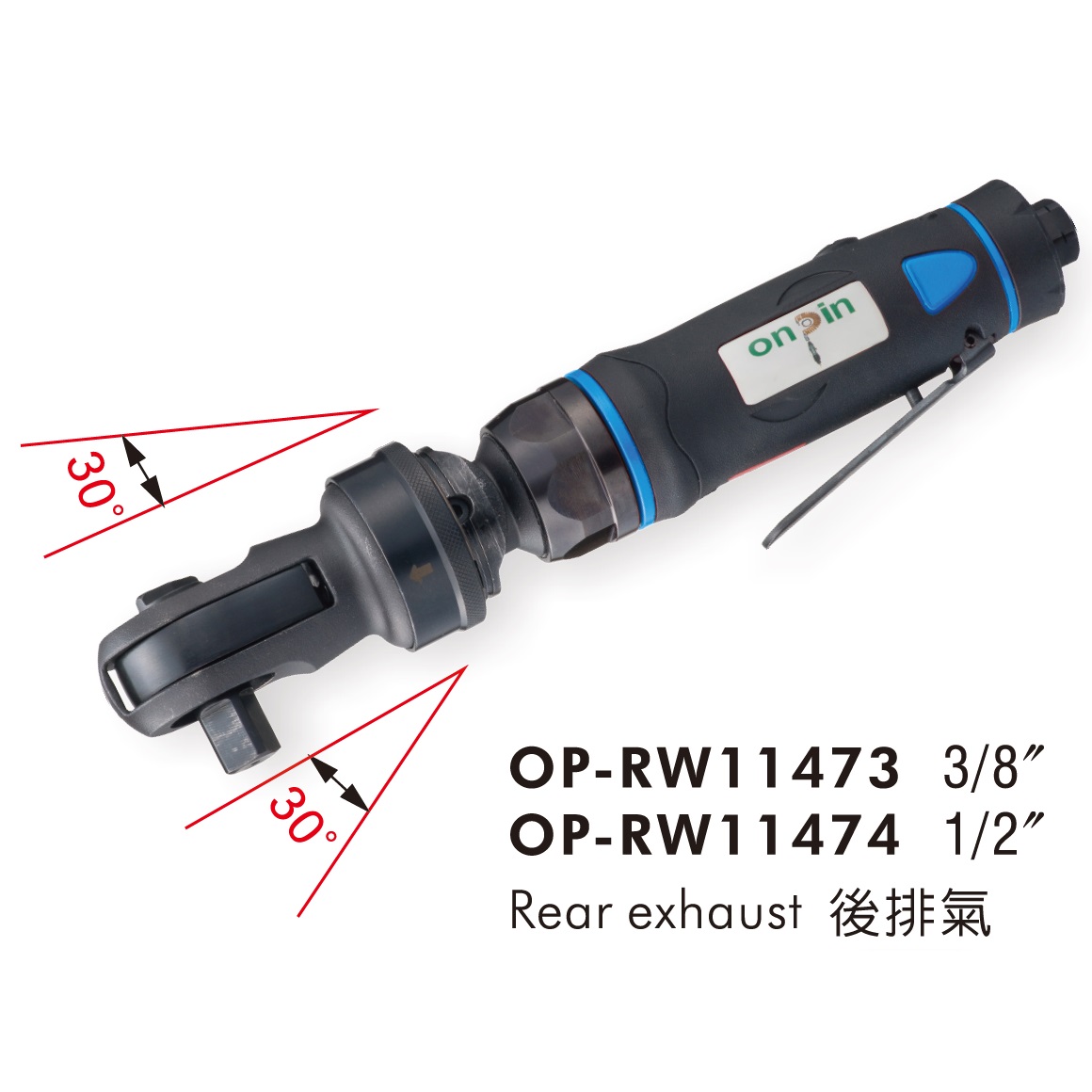

OP-RW11473、OP-RW11474

● Rear exhaust
● Big Torque , Light Weight

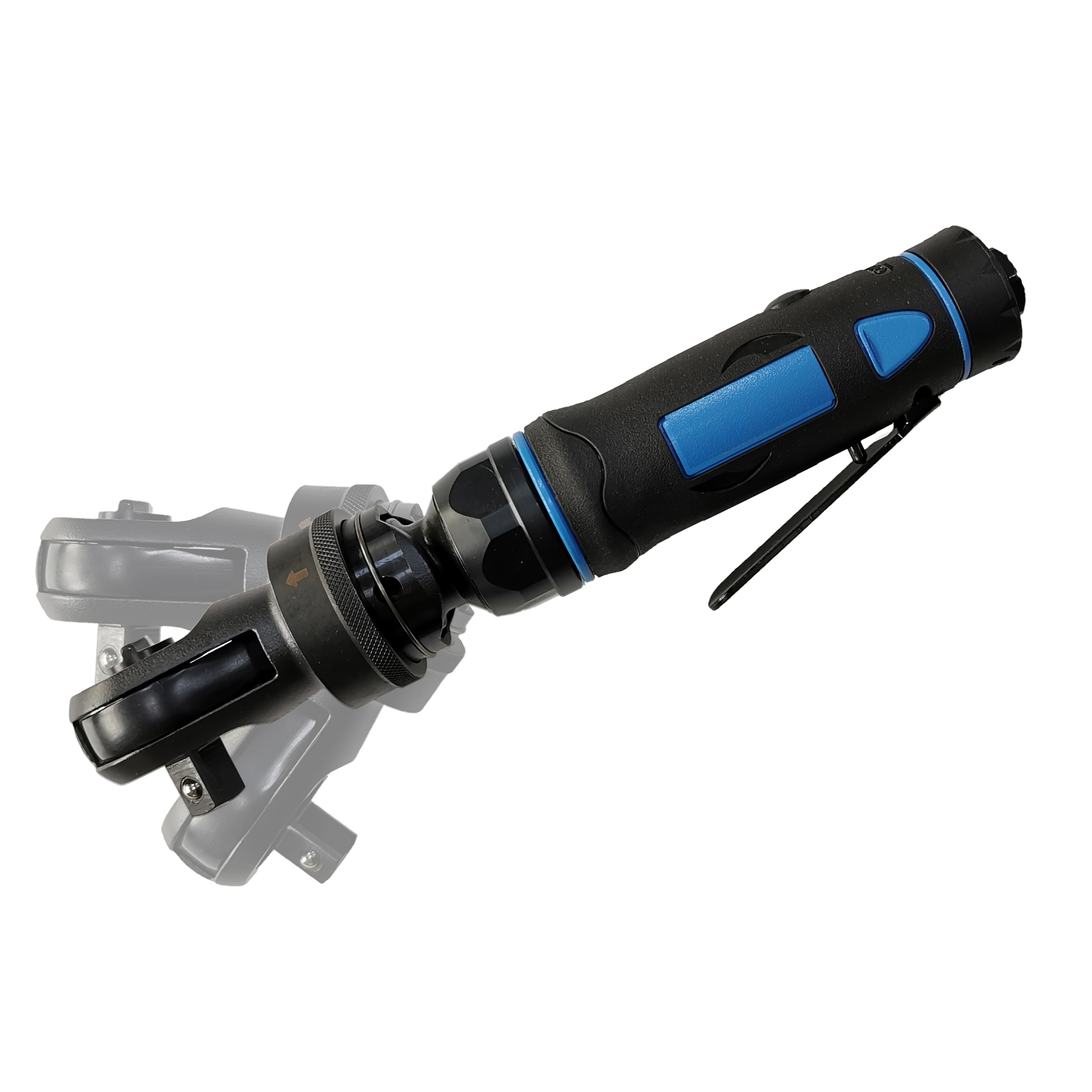

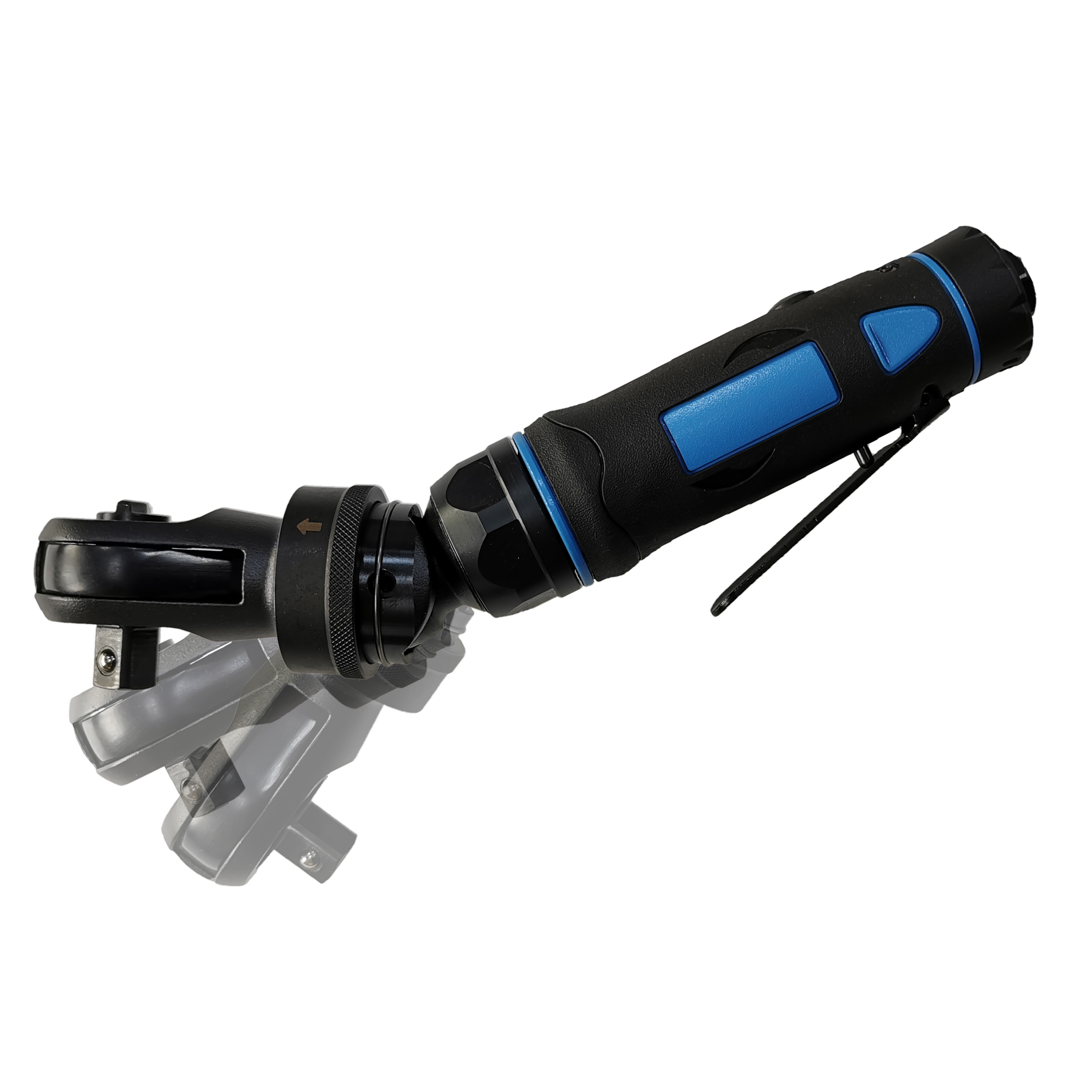

● Adjustable angle of ratchet head

Application:
This air ratchet handles a wide range of projects from
removing automotive fasteners to assembly work.
Manual download
Add to inquiry
Share to：

SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)

MODEL

Bolt Size
Capacity

 Working
Torque		 MAX.
Torque		 Free
Speed		 Air
Consumption		 Overall
Lemgth		 Air
Inlet		 Net
Weight		 Sound
Level
mm Nm ft-lb Nm ft-lb rpm l/min cfm mm inch P.T kg lb dB(A)
OP-RW11473 M10 80 59 100 74 100 310 11 275 10.82 1/4 1.45 3.19 85
OP-RW11474 M10 80 59 100 74 100 310 11 275 10.82 1/4 1.45 3.19 85

Packing :

Full Carton : 20 PCS / N.W.: 29 KGS / G.W.: 32 KGS / CUFT : 2"
