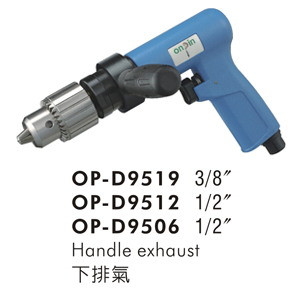

OP-D9519、OP-D9512、OP-D9506

OP-D9519、OP-D9512、OP-D9506
Share to:

  SPECIFICATION

(1).Gear type.

(2). Motor Power :   0.9 HP

MODEL Chuck Size Stall Torque Free Speed  Air Consumption Overall Length Air Inlet Net Weigh Reversible Sound Level
mm inch Nm ft-lb rpm l/min cfm mm inch P.T kg lb - dB(A)
OP-D9519 10 3/8 13.8 10.2 1900 367 13 212 8.35 1/4 1.57 3.45 X 87
OP-D9512 13 1/2 20.9 15.4 1250 367 13 225 8.86 1/4 1.72 3.78 X 87
OP-D9506 13 1/2 39.9 29.4 650 367 13 225 8.86 1/4 1.72 3.78 X 87

 SPECIFICATION( air pressure at 90 PSI、6.2bar、6.3kg/cm2)
