OP-808A1

● High attack frequency.
● Low counteraction.
● Rear exhaust with muffler
● three different speed choose


Application:
Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
Share to:
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
MODEL Screw Size Capacity Working
Torque
MAX.
Torque
Free Speed Air
Consumption
Overall
Length
Air
Inlet
Net
Weight
Sound
Level

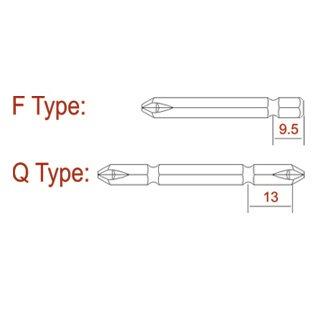

Bit
Type
mm Nm ft-lb Nm ft-lb rpm l/min cfm mm inch P.T kg lb dB(A) type
OP-808A1 4~5 20 15 35 26 10000 127 4.5 190 7.48  1/4 0.76 1.68 71 Q

Packing :

OP-808A1   Carton : 20 pcs / N.W. : 15.2 kg / G.W : 21.4 kg / Cuft : 2.3 "
