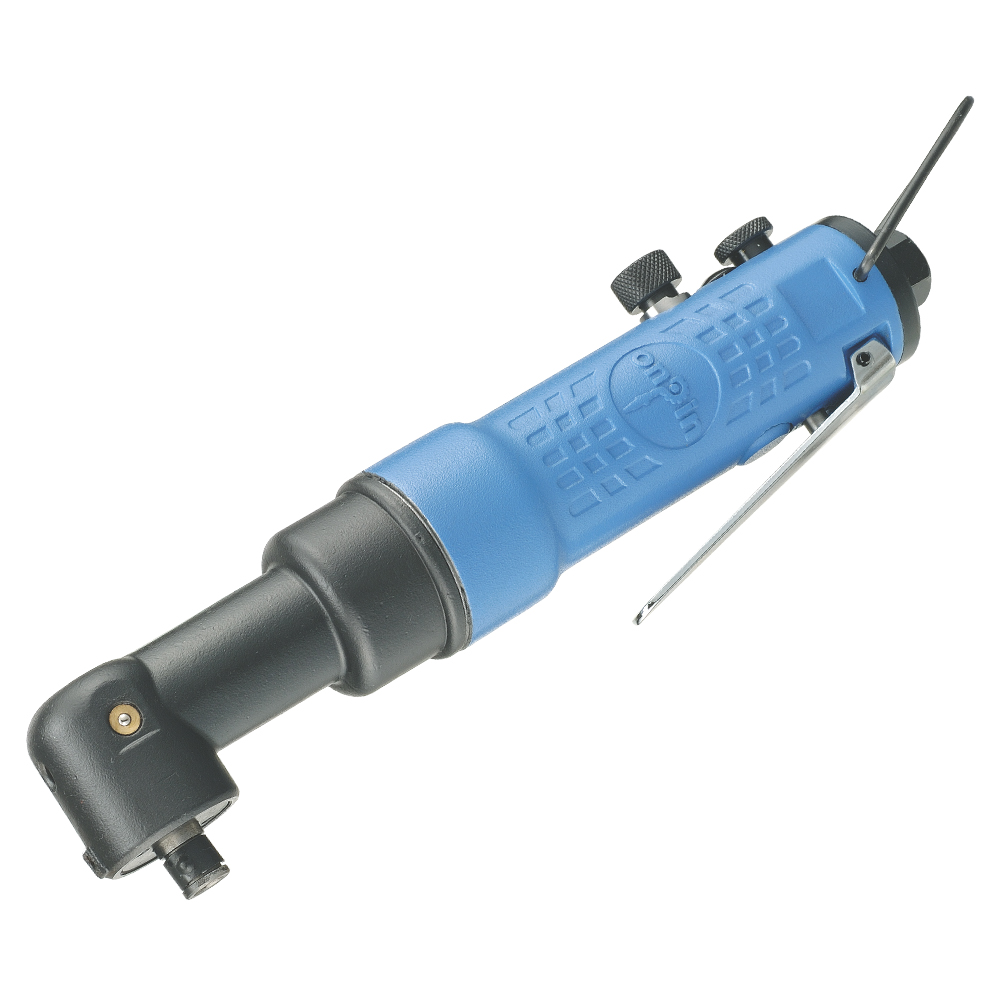

OP-311LHA
● High attack frequency.
● Low counteraction.
● Angle housing can using in small spaces
● One hand operation forward and reverse
● Reverse button has self locking function
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
●Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
● Low counteraction.
● Angle housing can using in small spaces
● One hand operation forward and reverse
● Reverse button has self locking function
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
●Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Screw Size Capacity | Working Torque |
MAX. Torque |
Free | Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
Bit Type |
|||||
| Speed | |||||||||||||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | type | |
| OP-311LHA | 5~6 | 40 | 29 | 90 | 66 | 8500 | 240 | 8.5 | 265 | 10.43 | 1/4 | 1.56 | 3.44 | 90 | F |
Packing :
Carton : 10 pcs / N.W. : 15.8 kg / G.W : 18.6 kg / Cuft : 1.1 "
