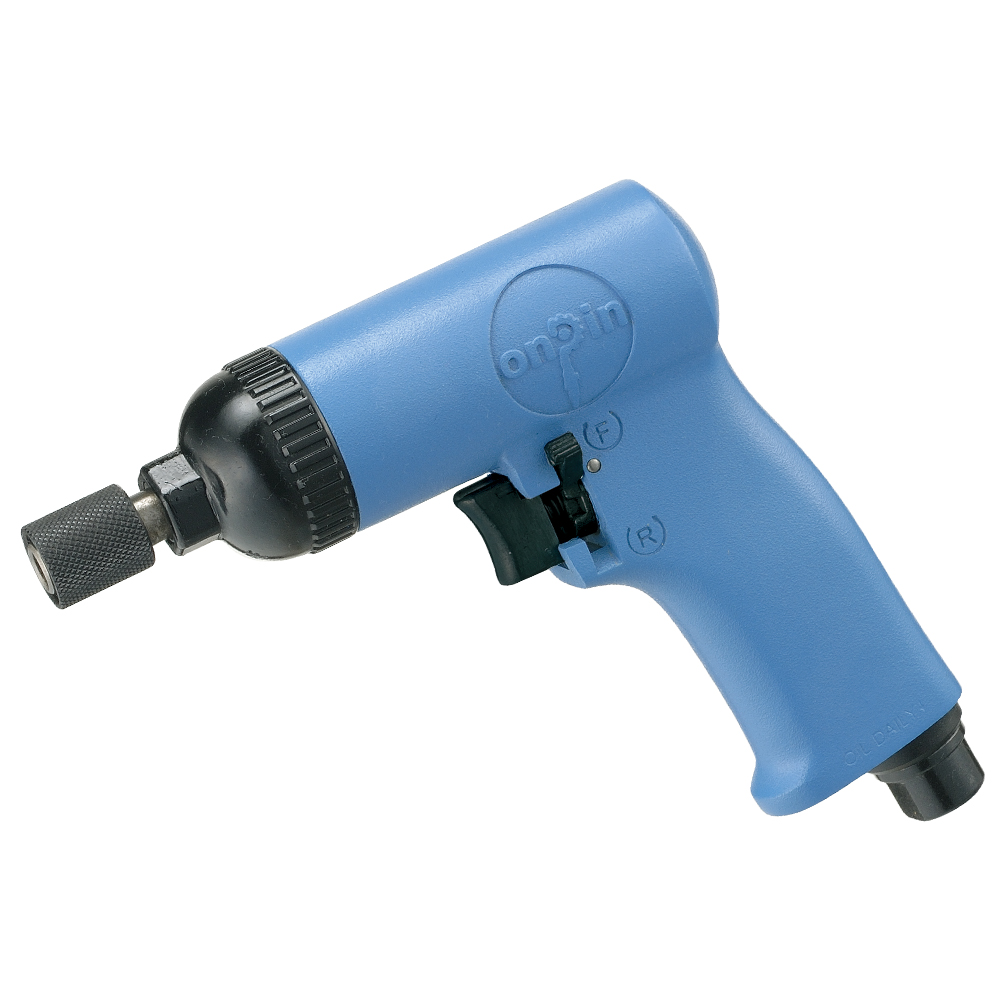

OP-301LA1
● One hand operation,forward & reverse switch
● Handle exhaust
● light weight , high speed.
● with quick chuck, easy to change the bits
Application:
Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
● Handle exhaust
● light weight , high speed.
● with quick chuck, easy to change the bits
Application:
Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
Packing List
Carton : 10 pcs / N.W.: 11.1 KGS / G.W.: 13.4 KGS / CUFT: 1.1"
| MODEL | Screw Size Capacity | Working Torque |
MAX. Torque |
Free | Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
Bit Type |
|||||
| Speed | |||||||||||||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | type | |
| OP-301LA1 | 4~5 | 25 | 18 | 35 | 26 | 13000 | 198 | 7 | 150 | 5.9 | 1/4 | 0.9 | 1.98 | 88 | Q |
Packing List
Carton : 10 pcs / N.W.: 11.1 KGS / G.W.: 13.4 KGS / CUFT: 1.1"
