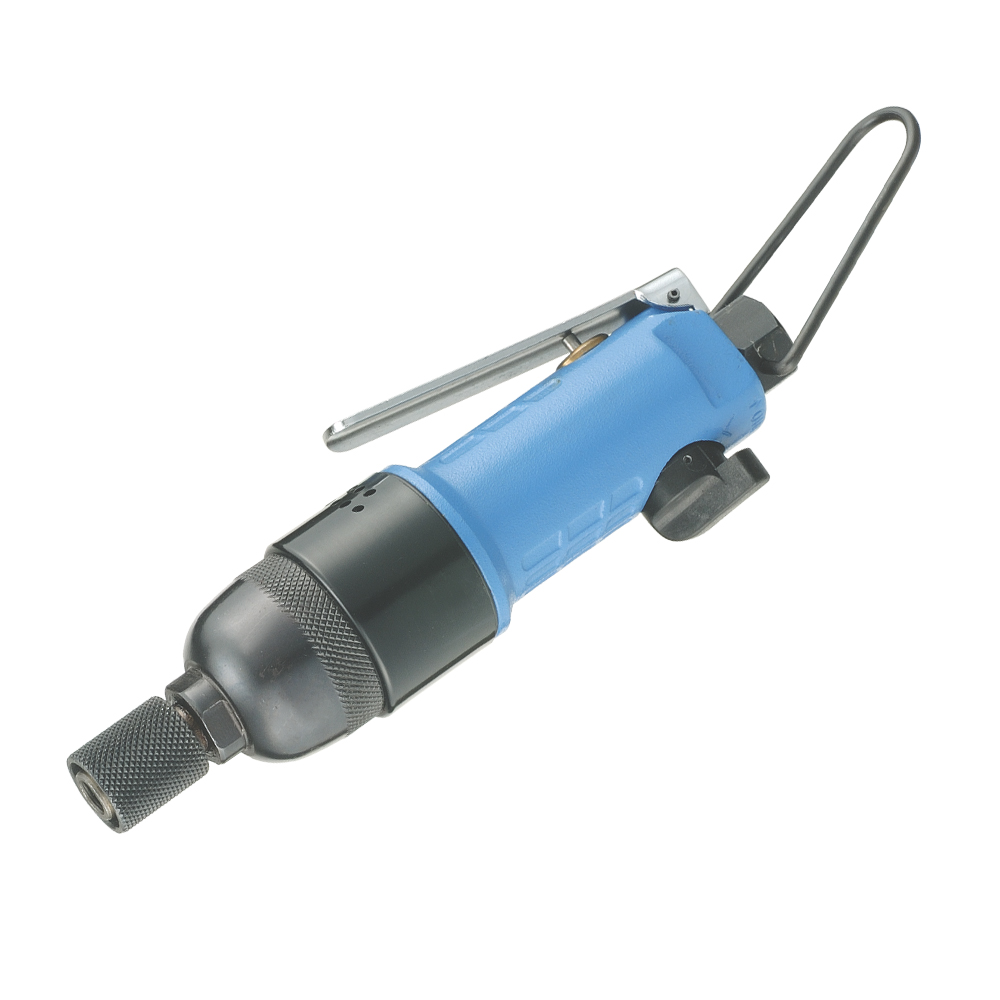

OP-305
● High attack frequency.
● Low counteraction.
● 360 degree rotate side exhaust
● lightweight
Application:
●Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
● Low counteraction.
● 360 degree rotate side exhaust
● lightweight
Application:
●Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
Packing :
Carton : 20 pcs / N.W. : 11.3 kg / G.W : 16.31 kg / Cuft : 1.1 "
| MODEL | Screw Size Capacity | Working Torque |
MAX. Torque |
Free | Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
ound Leve |
|||||
| Speed | |||||||||||||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | (A) | |
| OP-305 | 4 | 20 | 15 | 30 | 22 | 12500 | 141 | 5 | 170 | 6.69 | 1/4 | 0.57 | 1.26 | 89 | Q |
Packing :
Carton : 20 pcs / N.W. : 11.3 kg / G.W : 16.31 kg / Cuft : 1.1 "
