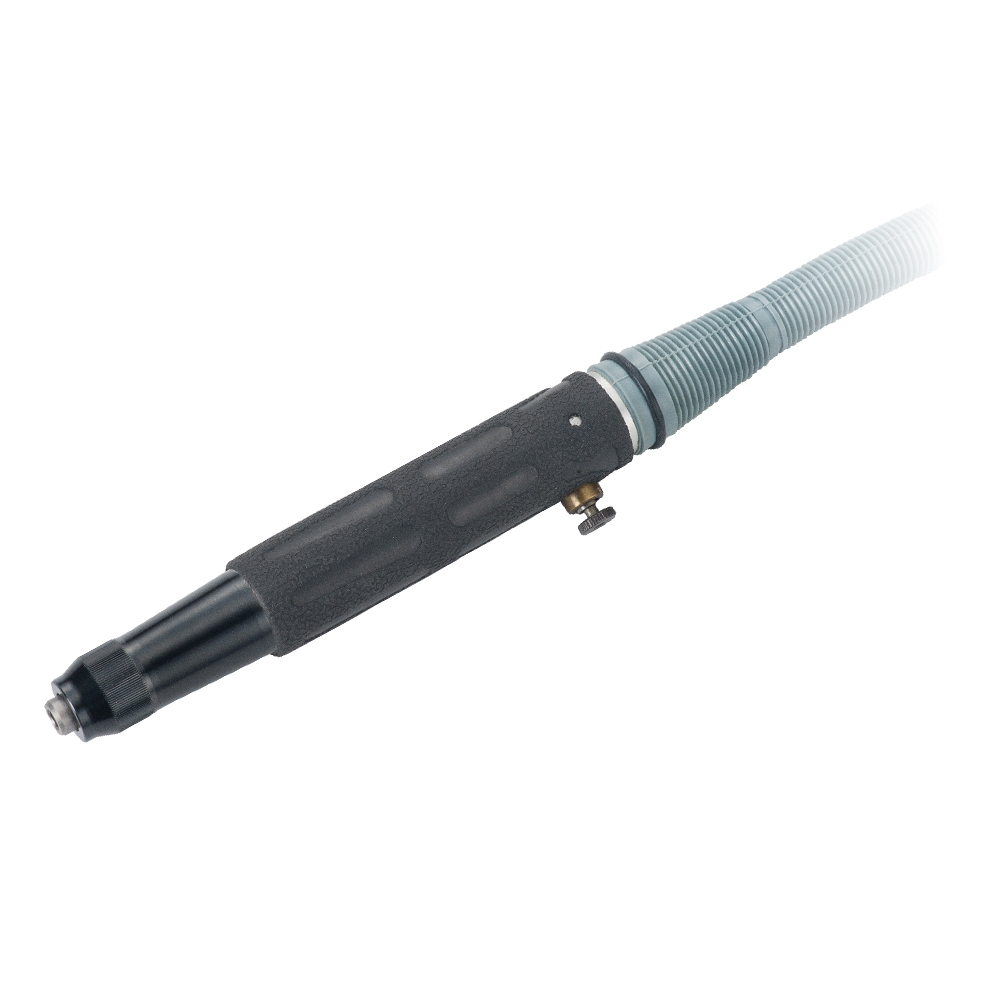

OP-106A
● One hand operation forward and reverse
● reverse button has self locking function
● Bits Hex size is 4mm
● Low noise, Low air consumption, and save energy
● With push-start device, all parts stop working automatically while reaching the torque
Application:
● Apply to release or fasten heavy-precise screws.
● Apply especially to industry assembly lines such as computer, instrument, and electric.
● reverse button has self locking function
● Bits Hex size is 4mm
● Low noise, Low air consumption, and save energy
● With push-start device, all parts stop working automatically while reaching the torque
Application:
● Apply to release or fasten heavy-precise screws.
● Apply especially to industry assembly lines such as computer, instrument, and electric.
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
※ Hex size of bit : 4 mm
Packing :
Carton : 10 pcs / N.W. : 3.6 kg / G.W : 7.29 kg / Cuft : 1.1 "
| MODEL | Screw Size Capacity |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||
| mm | Nm | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | |
| OP-106A | 2 | 0.2~0.35 | 2500 | 71 | 2.5 | 180 | 7.09 | 1/4 | 0.35 | 0.77 | 69 |
Packing :
Carton : 10 pcs / N.W. : 3.6 kg / G.W : 7.29 kg / Cuft : 1.1 "
