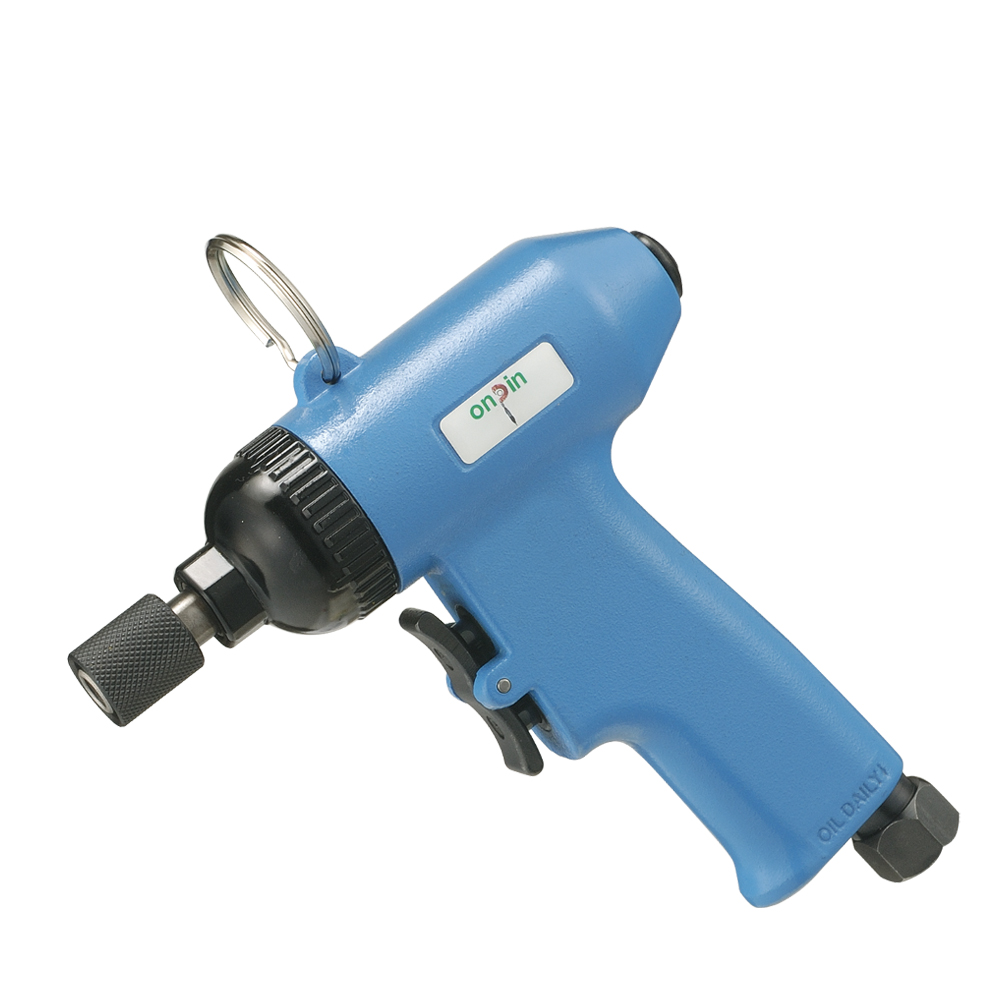

OP-601A
● High attack frequency.
● Low counteraction.
● Handle exhaust
● Light weight , high speed.
● With quick chuck, easy to change the bits
● Quick of forward & backward trigger
Application:
●Especially in heavy-productive industries (rattan, carpentry, eletric, motor, aluminum, and hardware).
● Low counteraction.
● Handle exhaust
● Light weight , high speed.
● With quick chuck, easy to change the bits
● Quick of forward & backward trigger
Application:
●Especially in heavy-productive industries (rattan, carpentry, eletric, motor, aluminum, and hardware).
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Screw Size Capacity | Working Torque |
MAX. Torque |
Free | Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
Bits Type |
|||||
| Speed | |||||||||||||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | type | |
| OP-601A | 4~5 | 25 | 18 | 35 | 26 | 13000 | 170 | 6 | 155 | 6.1 | 1/4 | 0.86 | 1.9 | 82 | Q |
Packing List
Carton : 12 pcs / N.W.: 10.4 KGS / G.W.: 13.2 KGS / CUFT: 1.1"
