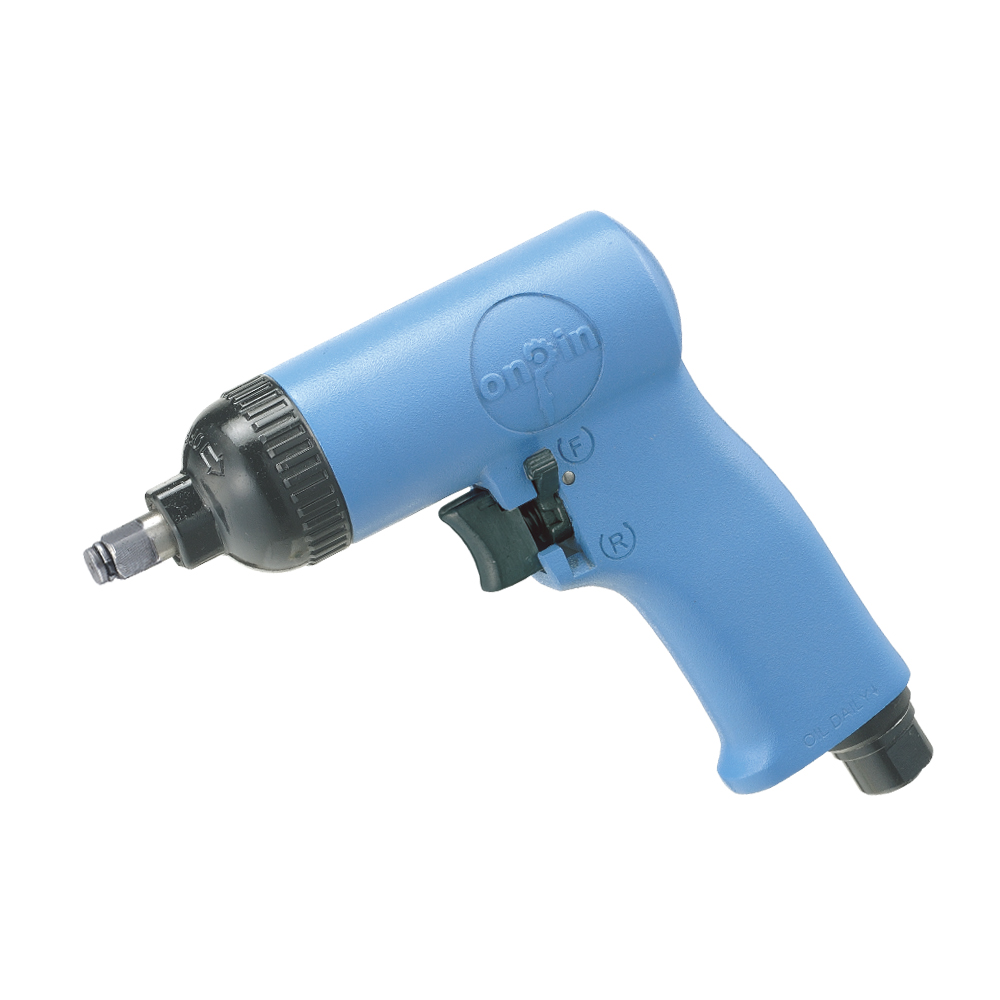

OP-301LB3
● One hand operation,forward & reverse switch
● Handle exhaust
● light weight , high speed.
Application:
Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
● Handle exhaust
● light weight , high speed.
Application:
Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
PECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
Packing List:
Carton : 12 Pcs / N.W. : 10.8 KGS / G.W : 13.2 KGS / CUFT : 1.1"
| MODEL | Anvil Size |
Bolt Size Capacity |
Working Torque |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | ||
| OP-301LB3 | 3/8" | M8 | 27 | 20 | 35 | 26 | 13,000 | 198 | 7 | 145 | 5.71 | 1/4 | 0.9 | 1. | 88 |
Packing List:
Carton : 12 Pcs / N.W. : 10.8 KGS / G.W : 13.2 KGS / CUFT : 1.1"
