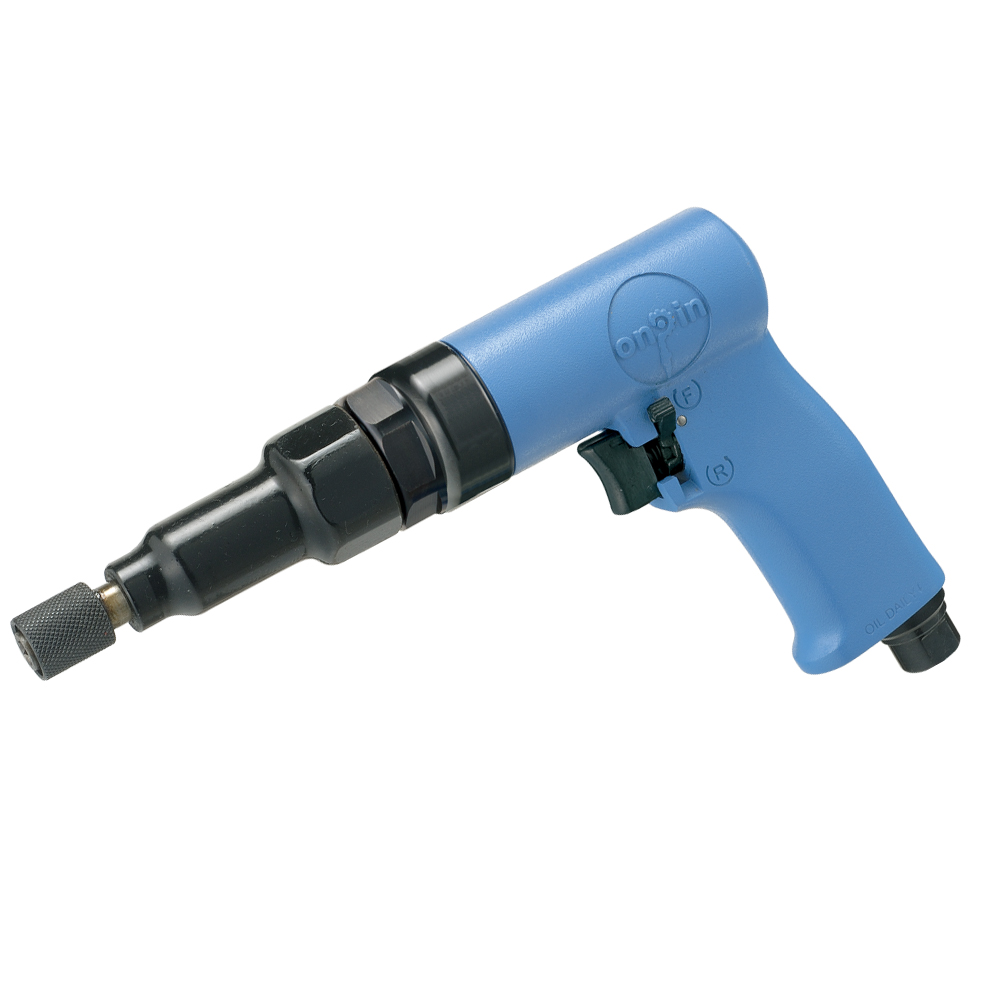

OP-301LCG
● With torque regulator.
● One hand operation forward and reverse

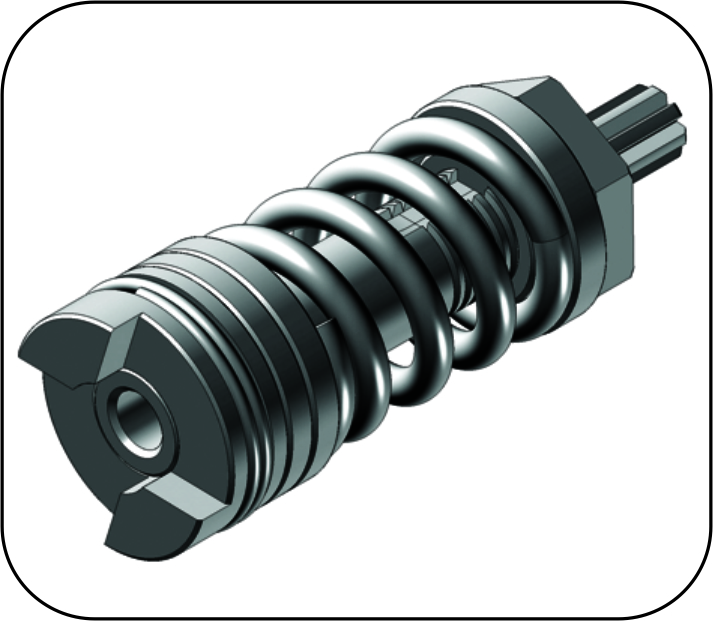

● While reaching the fixed torque, clutch will run automatically and Protect the workpiece from being damaged.
Application:
Apply to release or fasten the high-precise screw, especially for outside box setting in industries such as toy, electric, carpentry, and plastic.
● One hand operation forward and reverse
● While reaching the fixed torque, clutch will run automatically and Protect the workpiece from being damaged.
Application:
Apply to release or fasten the high-precise screw, especially for outside box setting in industries such as toy, electric, carpentry, and plastic.
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Screw Size Capacity | MAX. Torque |
Free | Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
Bits type |
||||
| Speed | |||||||||||||
| mm | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | type | |
| OP-301LCG | 6 | 8 | 6 | 600 | 212 | 7.5 | 230 | 9.06 | 1/4 | 1.15 | 2.54 | 88 | Q |
Packing list:
Carton : 10 pcs / N.W. : 11.6 KGS / G.W. : 15.68 KGS / CUFT : 1.1"
