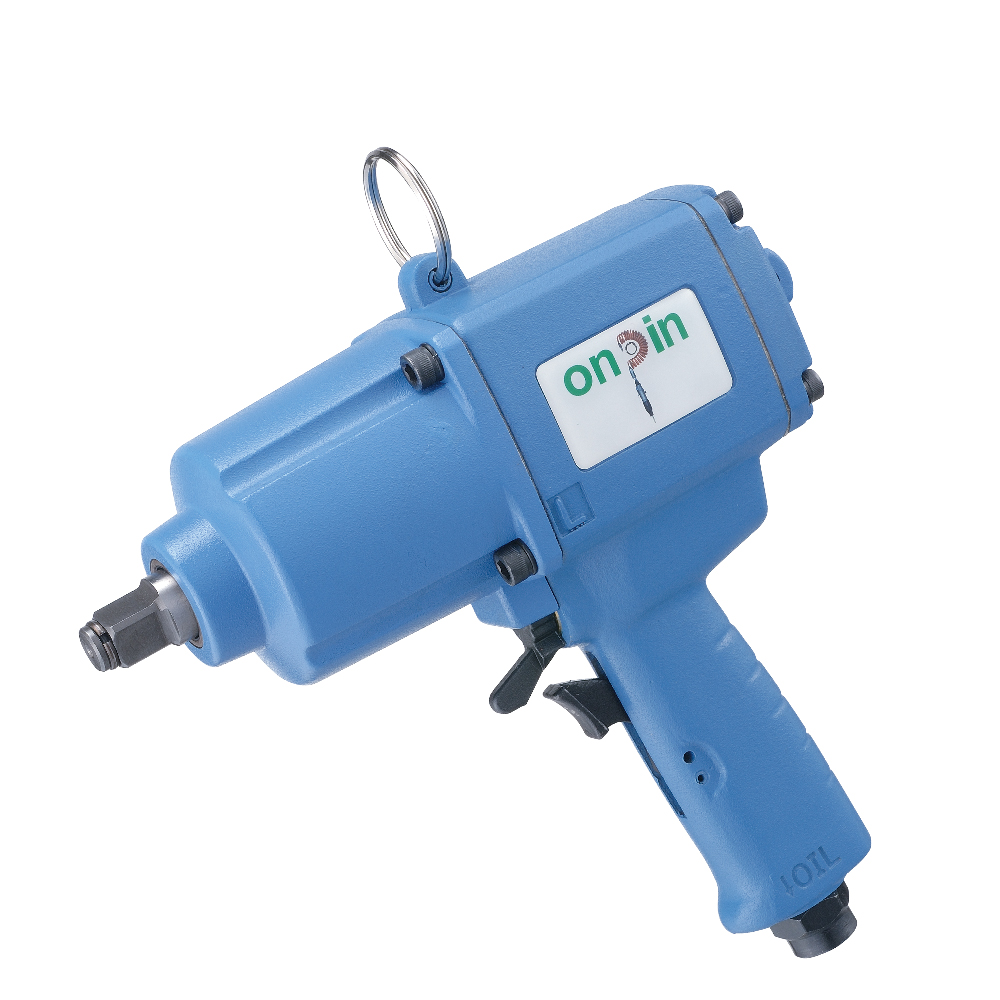

OP-131LB
● One hand operation,forward & reverse switch.
● Cylinder is in alloy steel material.
● oil-in-the-front cap design for extended long performance life
● The front cap & the body are fixed by screws, suitable for long working time.And not easy loose the front cap.
● Side exhaust
Application:
Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
● Cylinder is in alloy steel material.
● oil-in-the-front cap design for extended long performance life
● The front cap & the body are fixed by screws, suitable for long working time.And not easy loose the front cap.
● Side exhaust
Application:
Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
Packing List :
Carton : 4 Pcs / N.W : 12.4 KGS / G.W. : 14.09 KGS / CUFT : 0.8"
| MODEL | Anvil Size |
Bolt Size Capacity |
Working Torque |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | ||
| OP-131LB | 1/2" | M18 | 360 | 266 | 580 | 428 | 4300 | 283 | 10 | 210 | 8.27 | 1/4 | 3.1 | 6.83 | 96 |
Packing List :
Carton : 4 Pcs / N.W : 12.4 KGS / G.W. : 14.09 KGS / CUFT : 0.8"
