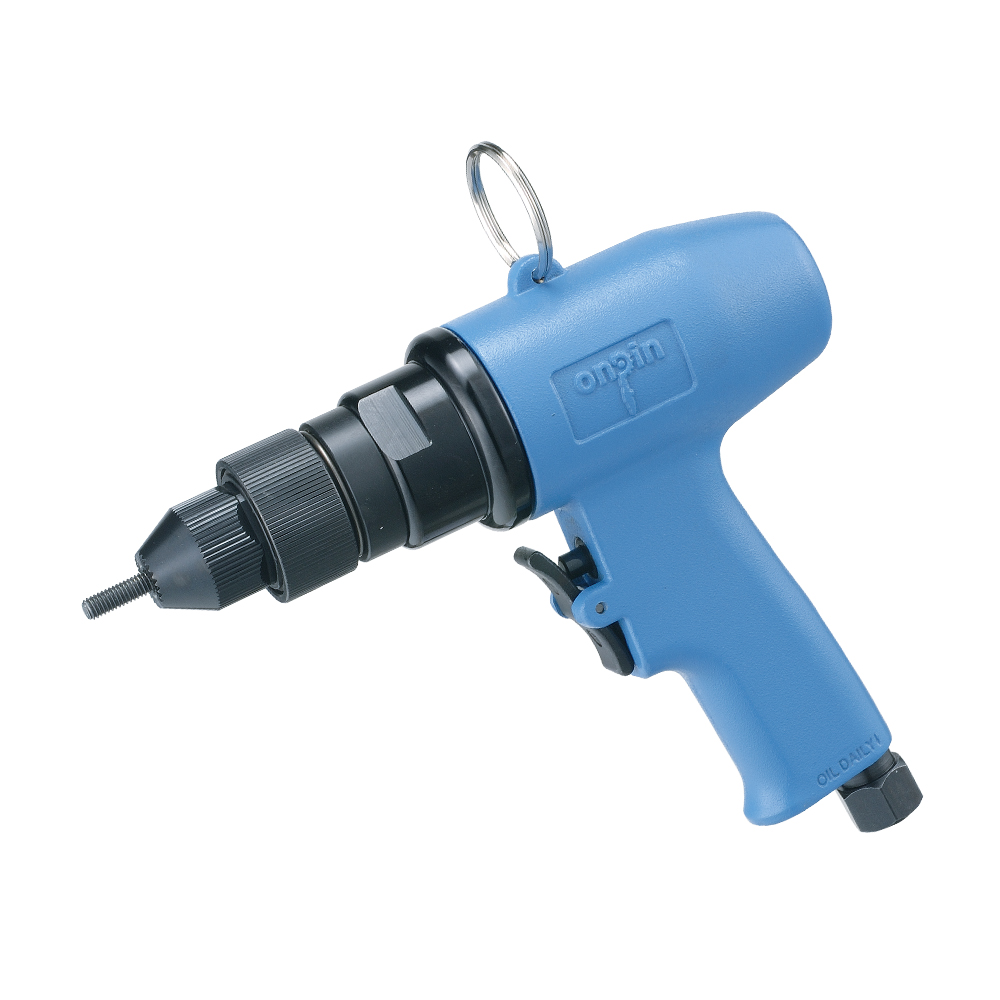

OP-PS5232
● Gear Type
● Nut Size : 3,4,5 mm , 3/16"
● Quick of forward & backward trigger

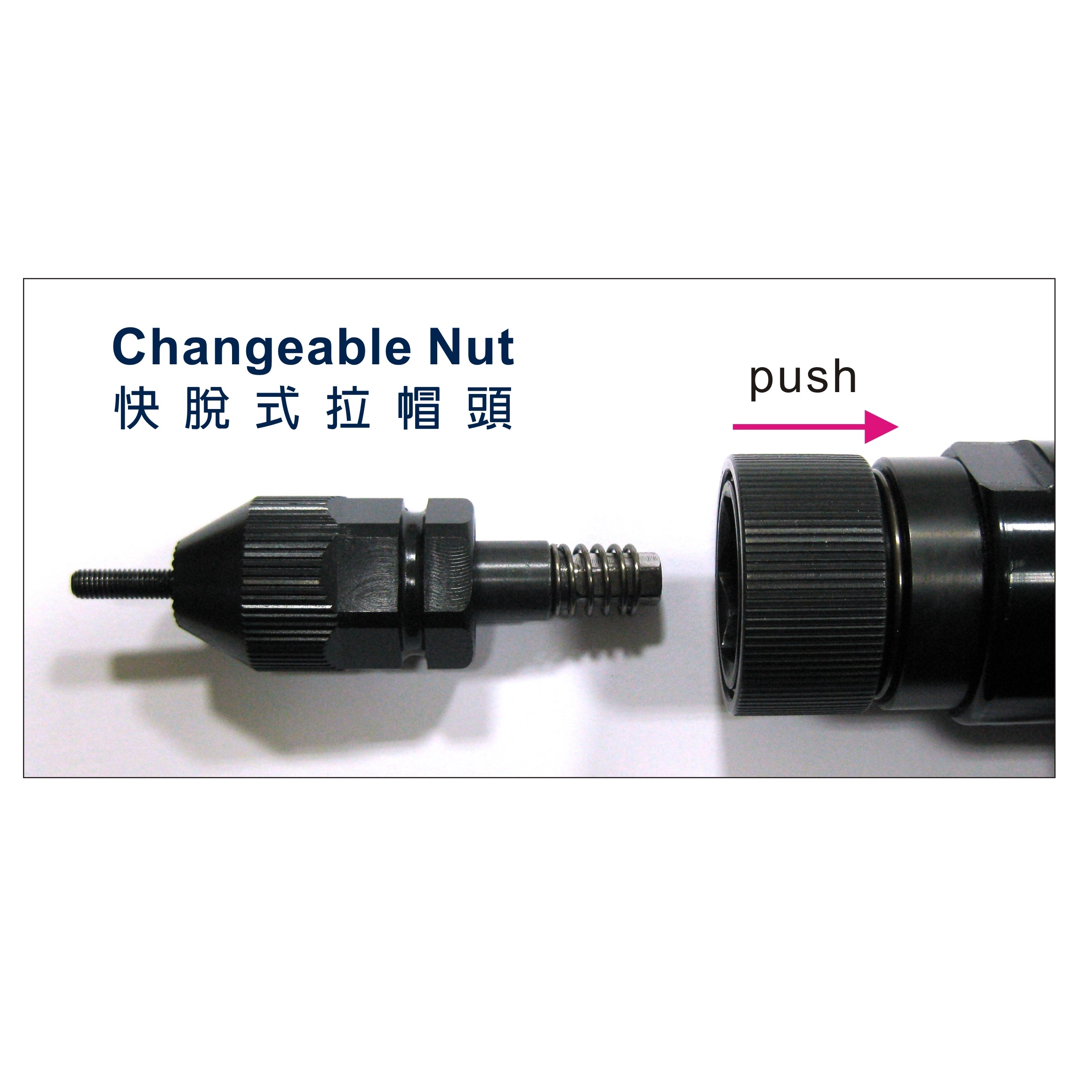

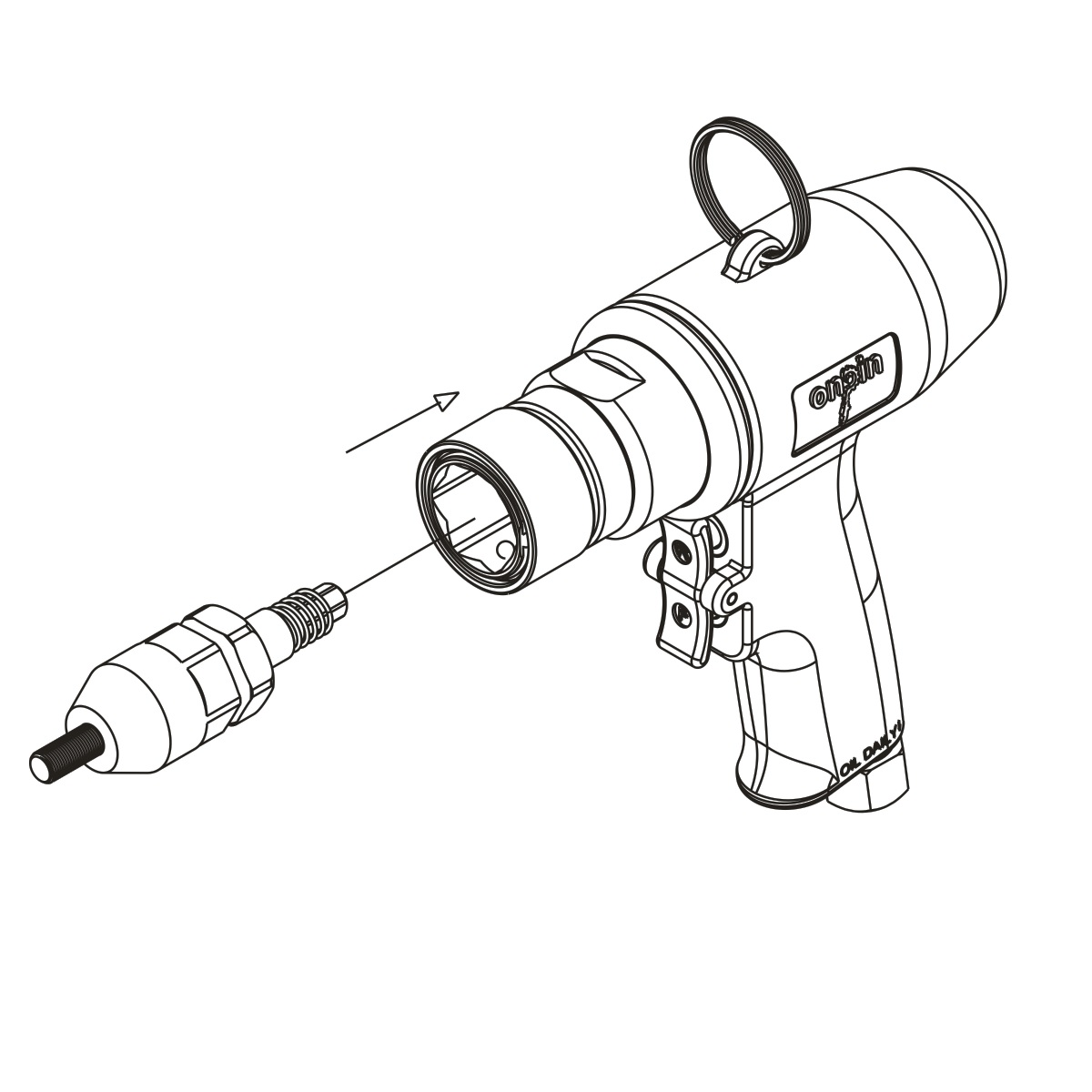

● The type of quick-changing
● Applicable material : Alu. and Steel , can't be use stainless.
● Handle exhaust
● Nut Size : 3,4,5 mm , 3/16"
● Quick of forward & backward trigger
● The type of quick-changing
● Applicable material : Alu. and Steel , can't be use stainless.
● Handle exhaust
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Structure |  |
 |
Free Speed | Air Cousumption | Overall Length | Air Inlet | Net Weight | |||
| mm | mm | rpm | l/min | cfm | mm | inch | P.T | kg | lb | ||
| OP-PS5232 | Gear | 3,4,5,3/16" | 3,4 | 3200 | 240 | 8.5 | 205 | 8.07 | 1/4 | 1.48 | 3.26 |
Nut Tools with order code number reference
| Model | OP-PS5232 |
| Size | Order Code |
| M3 | OP-PS5232-3 |
| M4 | OP-PS5232-4 |
| M5 | OP-PS5232-5 |
| 3/16" | OP-PS5232-3/16" |
Packing List:
Carton : 10 Pcs / N.W. : 14.8 KGS / G.W. : 17.7 KGS / CUFT : 1.7"
