OP-301L90

● High attack frequency.
● Low counteraction.

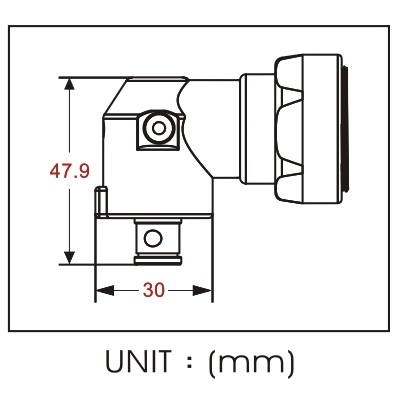

● Angle housing can using in small spaces
● 3 different speed can choose

Application:
●Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
Share to:
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
MODEL Screw Size Capacity Working
Torque
MAX.
Torque
Free Air
Consumption
Overall
Length
Air
Inlet
Net
Weight
Sound
Level

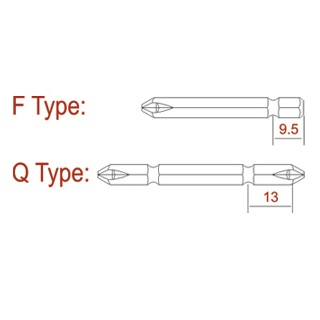

Bit
Type
Speed
mm Nm ft-lb Nm ft-lb rpm l/min cfm mm inch P.T kg lb dB(A) type
OP-301L90 4 15 11 40 30 9000 141 5 240 9.45  1/4 1.22 2.69 83 F

Packing :

Carton : 20 pcs / N.W. : 24.6 kg / G.W : 30.3 kg / Cuft : 2 "
