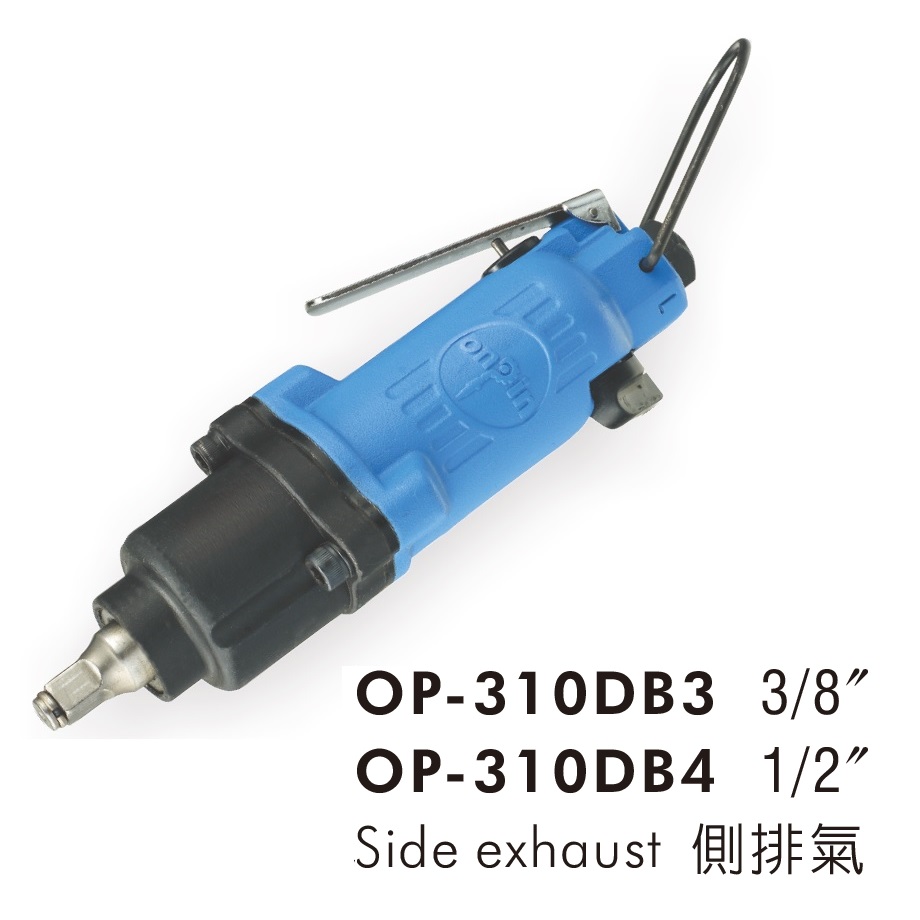

OP-310DB3, OP-310DB4
●Large torque.
●Long lasting.
Application:
Apply to heavy-productive assembly line of car and motor.
●Long lasting.
Application:
Apply to heavy-productive assembly line of car and motor.
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Bolt Size Capacity | Working Torque |
MAX. Torque |
Free Speed | Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | |
| OP-310DB3 | M12 | 120 | 86 | 300 | 221 | 8000 | 254 | 9 | 200 | 7.87 | 1/4 | 1.18 | 2.6 | 96 |
| OP-310DB4 | M12 | 120 | 86 | 300 | 221 | 8000 | 254 | 9 | 200 | 7.87 | 1/4 | 1.18 | 2.6 | 96 |
Packing :
Full Carton : 20 PCS / N.W. : 23.2 KGS / G.W. : 28.2 KGS / CUFT : 1.1"
