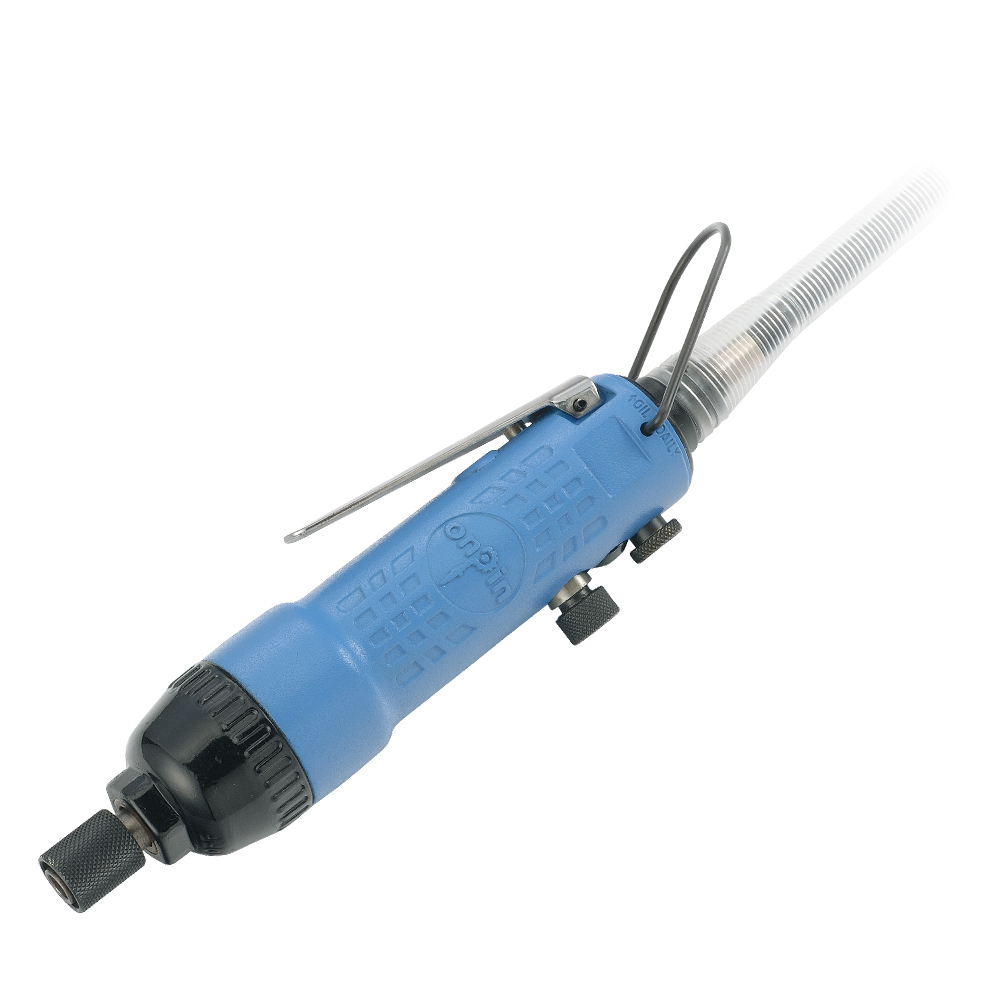

OP-809A1
● High attack frequency.
● Low counteraction.
● One hand operation forward and reverse
● Reverse button has self locking function
● Oil-in-the-front cap design for extended long performance life
● Rear exhaust with muffler
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
● Low counteraction.
● One hand operation forward and reverse
● Reverse button has self locking function
● Oil-in-the-front cap design for extended long performance life
● Rear exhaust with muffler
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Screw Size Capacity | Working Torque |
MAX. Torque |
Free | Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
Bit Type |
|||||
| Speed | |||||||||||||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | type | |
| OP-809A1 | 6 | 45 | 33 | 130 | 96 | 8000 | 184 | 6.5 | 230 | 9.06 | 1/4 | 1.2 | 2.65 | 79 | Q |
Packing :
Carton : 10 pcs / N.W. : 12 kg / G.W : 14.1 kg / Cuft : 1.4 "
