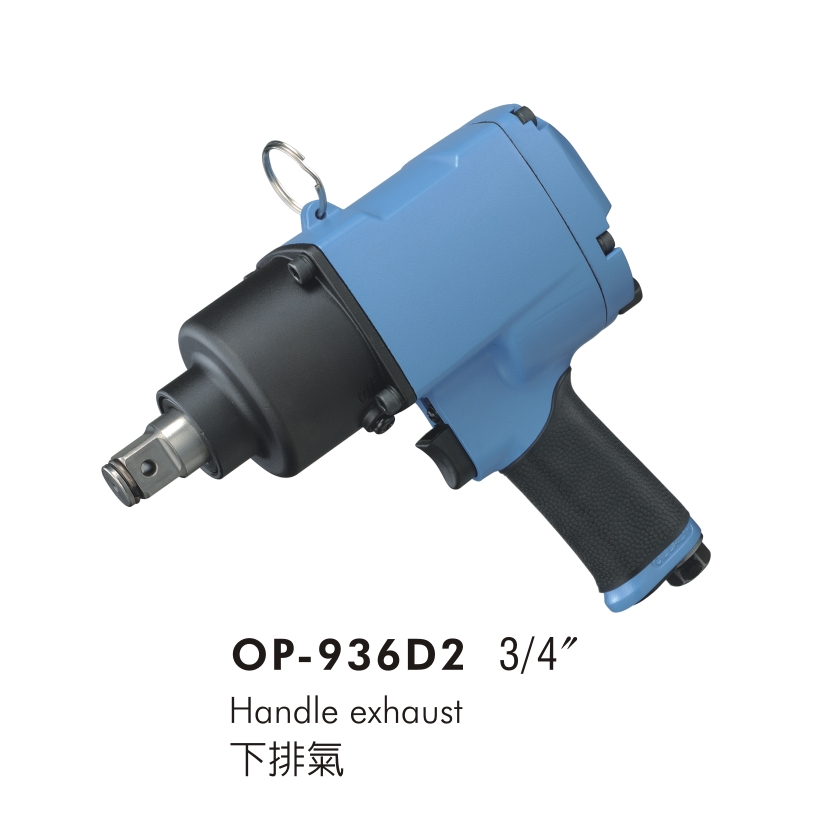

Specifications: OP-936D2: Handle exhaust
(1) Large torque.
(2) Long Lasting.
(3) Less vibration than single ring type.
Application: Especially in heavy-productive industries rattan, motor.
| MODEL | Bolt Size Capacity |
Working Torque |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inelt |
Net Weight |
Sound Level |
|||||
| mm |
Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm |
inch | P.T |
kg | lb | dB(A) | |
| OP-936D2 | M22 | 820 | 604 | 950 | 700 | 5400 | 424 | 15 | 223 | 8.78 | 1/4 | 4.1 | 9.04 | 93 |
