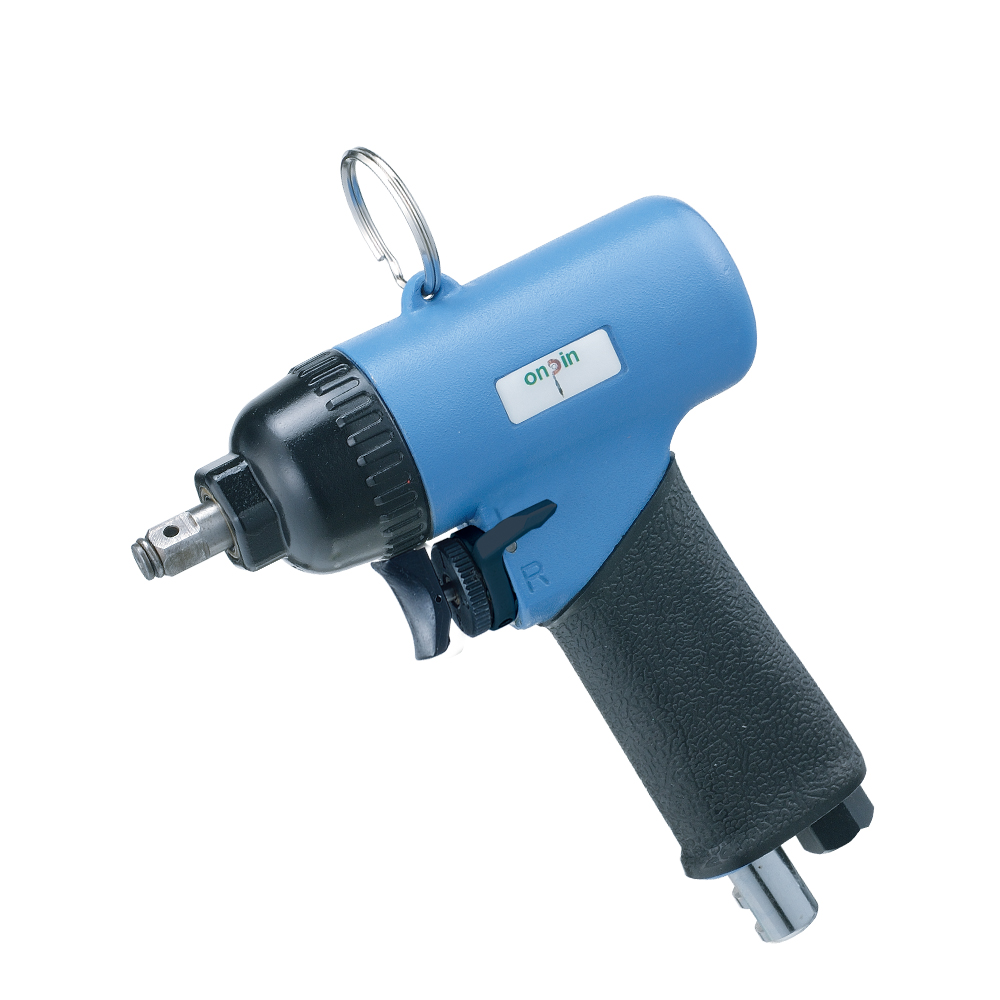

OP-406LB
● One hand operation,forward & reverse switch
● Handle exhaust
● with quick chuck, easy to change the bits
Application:
Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
● Handle exhaust
● with quick chuck, easy to change the bits
Application:
Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
Packing List
Carton : 12 pcs / N.W.: 14.8 KGS / G.W.: 17.2 KGS / CUFT: 1.1
| MODEL | Anvil Size |
Bolt Size Capacity |
Working Torque |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | ||
| OP-406LB | 3/8" | M12 | 100 | 74 | 190 | 140 | 8000 | 283 | 10 | 160 | 6.3 | 1/4 | 1.2 | 2.65 | 87 |
Packing List
Carton : 12 pcs / N.W.: 14.8 KGS / G.W.: 17.2 KGS / CUFT: 1.1
