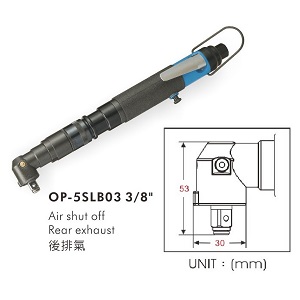

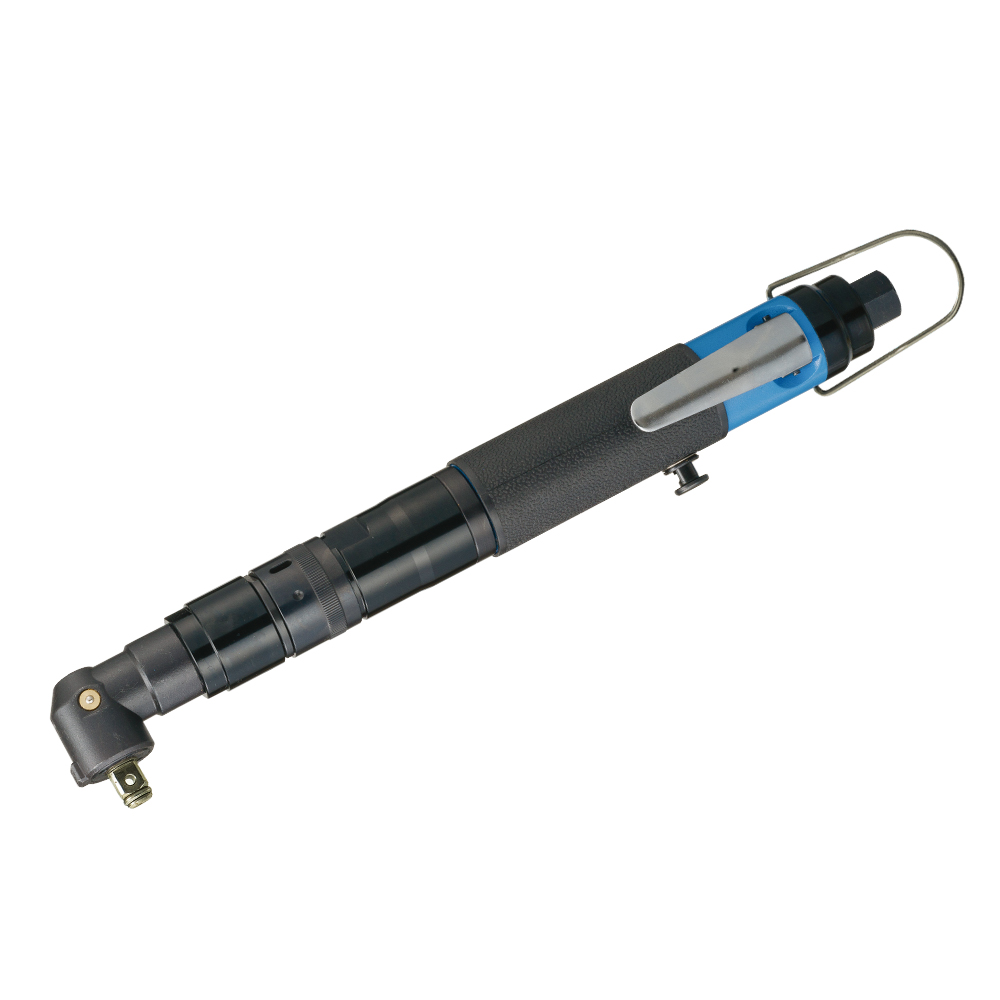

OP-5SLB03

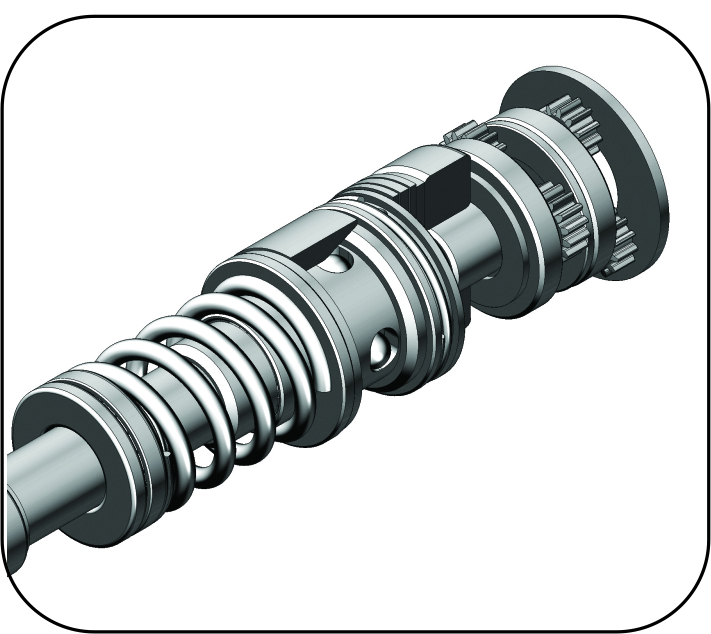

● While reaching the fixed torque, clutch will run automatically and Protect the workpiece from being damaged.
● With torque regulator.
● One hand operation forward and reverse
● Reverse button has self locking function
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
Apply to release or fasten the high-precise screw, especially for outside box setting in industries such as toy, electric, carpentry, and plastic.
● With torque regulator.
● One hand operation forward and reverse
● Reverse button has self locking function
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
Apply to release or fasten the high-precise screw, especially for outside box setting in industries such as toy, electric, carpentry, and plastic.
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Anvil Size |
Bolt Size Capacity |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||
| mm | Nm | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | ||
| OP-5SLB03 | 3/8" | M6 | 4.0~10 | 340 | 198 | 7 | 350 | 13.77 | 1/4 | 1.3 | 2.86 | 80 |
Packing :
Carton : 6 PCS / N.W. : 7.8 KGS / G.W. : 9 KGS / CUFT : 1.1"
