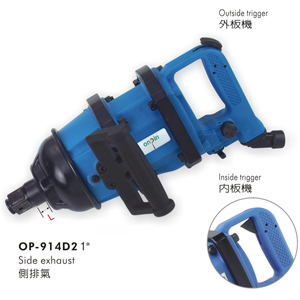

Specifications: OP-914D2: Side exhaust
‧Outside trigger: OP-914D2 with driver anvil length 1/2", OP-914D6 with driver anvil length 6-1/2", OP-914D8 with driver anvil length 8-1/2"
‧Inside trigger: OP-914DZ2 with driver anvil length 1/2", OP-914DZ6 with driver anvil length 6-1/2", OP-914DZ8 with driver anvil length 8-1/2"
| MODEL | Bolt Size Capacity |
Working Torque |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||||
| mm |
Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm |
inch | P.T |
kg | lb | dB(A) | |
| OP-914D2 | M27~M30 | 2000 | 1475 | 2500~2900 | 1840~2130 | 2800 | 452 | 16 | 393 | 21.65 | 3/8 | 10.3 | 22.71 | 100 |
| OP-914D6 | M27~M30 | 2000 | 1475 | 2500~2800 | 1840~2060 | 2800 | 452 | 16 | 543 | 21.38 | 3/8 | 12.3 | 27.12 | 100 |
| OP-914D8 | M27~M30 | 2000 | 1475 | 2500~2800 | 1840~2060 | 2800 | 452 | 16 | 594 | 23.39 | 3/8 | 13.3 | 29.3 | 100 |
| OP-914DZ2 | M27~M30 | 2000 | 1475 | 2500~2900 | 1840~2130 | 2800 | 452 | 16 | 393 | 15.47 | 3/8 | 10.3 | 22.71 | 100 |
| OP-914DZ6 | M27~M30 | 2000 | 1475 | 2500~2800 | 1840~2060 | 2800 | 452 | 16 | 543 | 21.38 | 3/8 | 12.3 | 27.12 | 100 |
| OP-914DZ8 | M27~M30 | 2000 | 1475 | 2500~2800 | 1840~2060 | 2800 | 452 | 16 | 594 | 23.39 | 3/8 | 13.3 | 29.3 | 100 |
