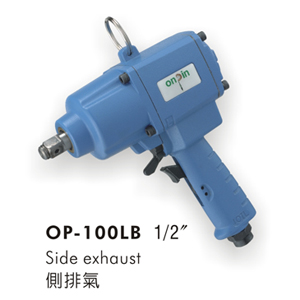

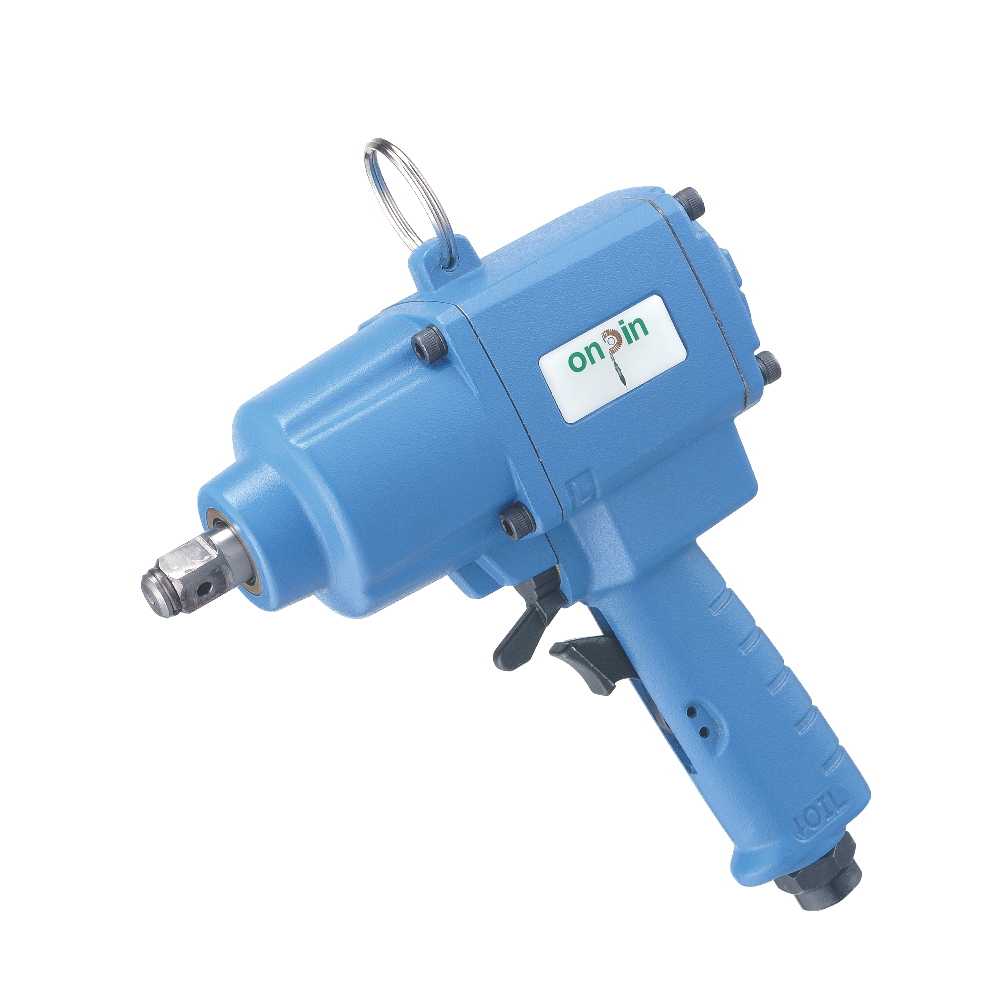

OP-100LB
● One hand operation,forward & reverse switch.
● Cylinder is in alloy steel material.
● oil-in-the-front cap design for extended long performance life
● The front cap & the body are fixed by screws, suitable for long working time.And not easy loose the front cap.
● Side exhaust
Application:
Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
● Cylinder is in alloy steel material.
● oil-in-the-front cap design for extended long performance life
● The front cap & the body are fixed by screws, suitable for long working time.And not easy loose the front cap.
● Side exhaust
Application:
Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
Packing List :
Carton : 4 Pcs / N.W : 7 KGS / G.W. : 8.69 KGS / CUFT : 0.8"
| MODEL | Anvil Size |
Bolt Size Capacity |
Working Torque |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | ||
| OP-100LB | 1/2" | M16 | 270 | 199 | 440 | 325 | 5000 | 240 | 8.5 | 180 | 7.09 | 1/4 | 2.3 | 5.07 | 92 |
Packing List :
Carton : 4 Pcs / N.W : 7 KGS / G.W. : 8.69 KGS / CUFT : 0.8"
