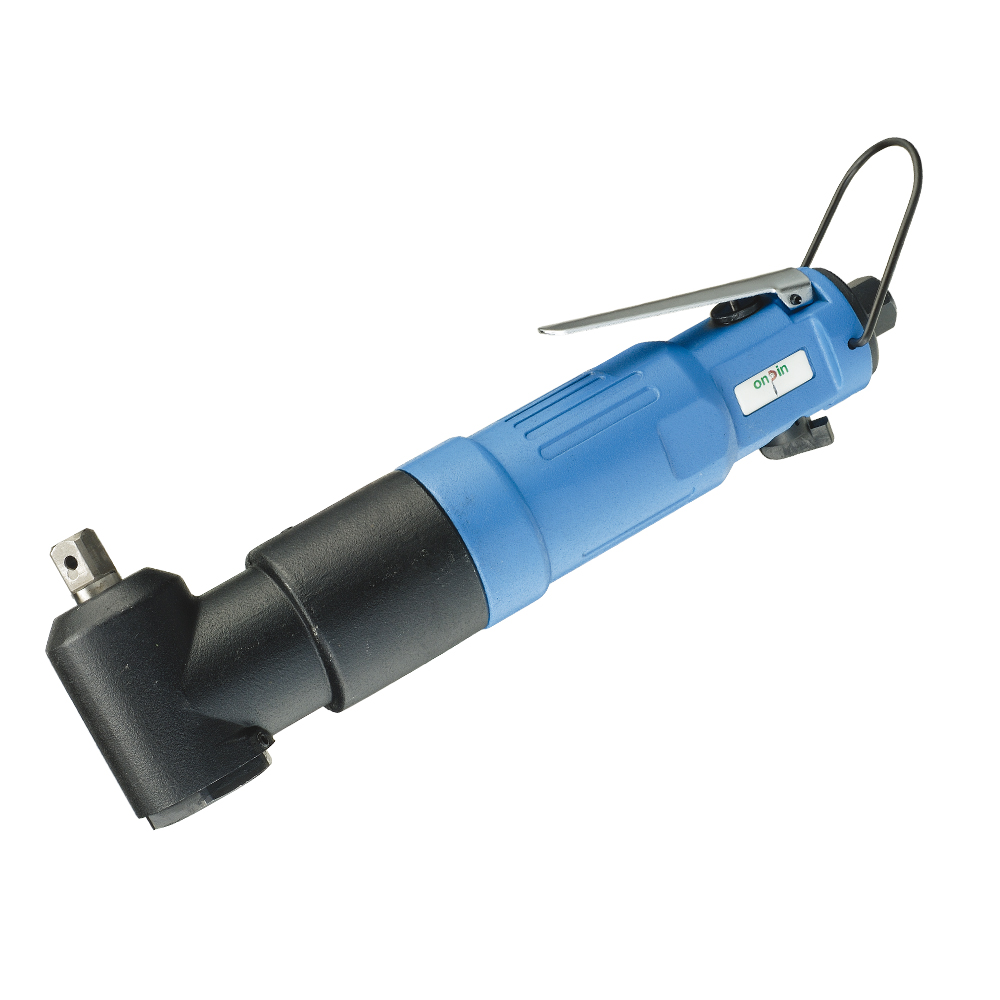

OP-100LH
● Forward & Reversible knob .

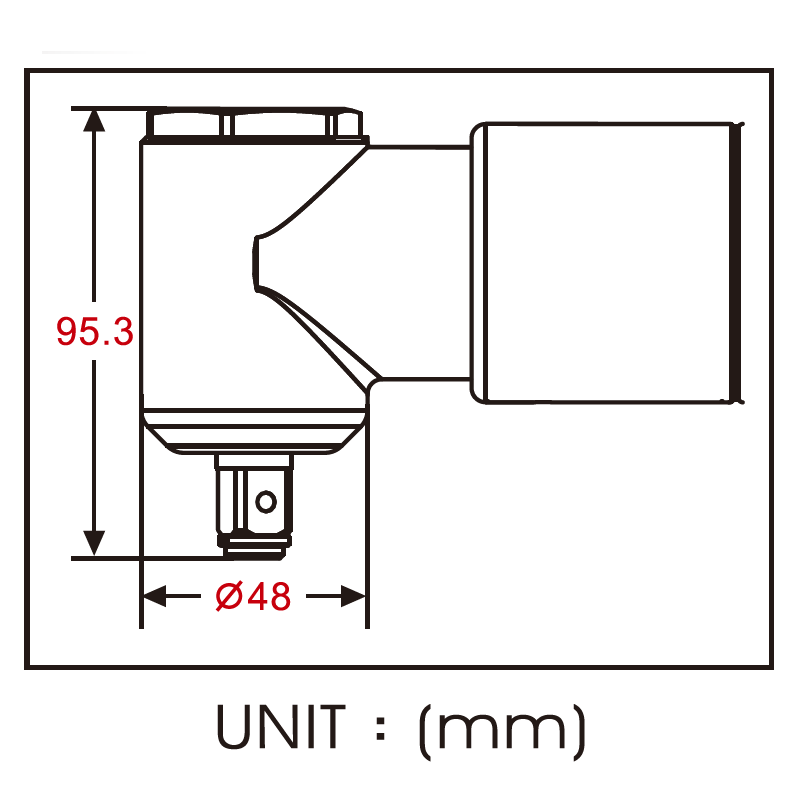

● Angle housing can using in small spaces

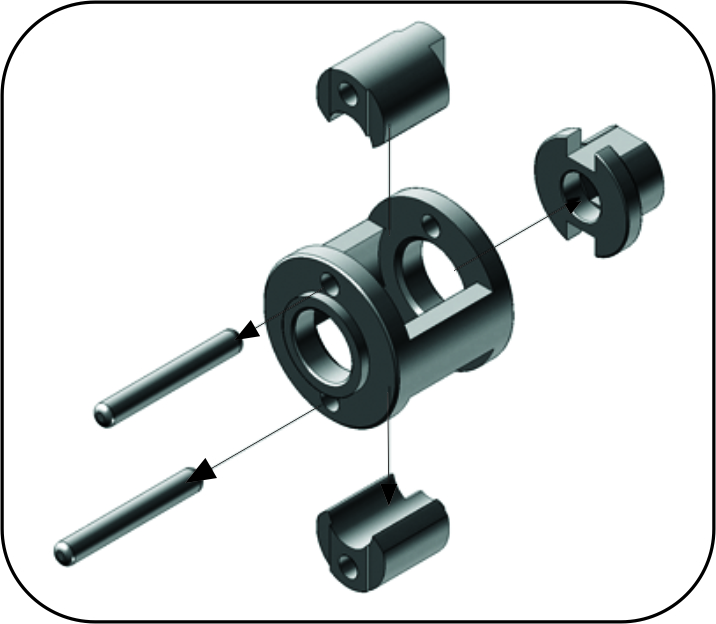

● Oil in the front cap design for extended long performance life.
● Rear exhaust,to reduce oil stains at work pieces.
Application:
Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
● Angle housing can using in small spaces
● Oil in the front cap design for extended long performance life.
● Rear exhaust,to reduce oil stains at work pieces.
Application:
Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
Packing :
Carton : 10 pcs / N.W. : 26.3 kg / G.W : 30.13 kg / Cuft : 1.4 "
| MODEL | Bolt Size Capacity |
Working Torque |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | |
| OP-100LH | M12 | 110 | 81 | 200 | 148 | 3000 | 240 | 8.5 | 300 | 11.81 | 1/4 | 2.63 | 5.79 | 87 |
Packing :
Carton : 10 pcs / N.W. : 26.3 kg / G.W : 30.13 kg / Cuft : 1.4 "
